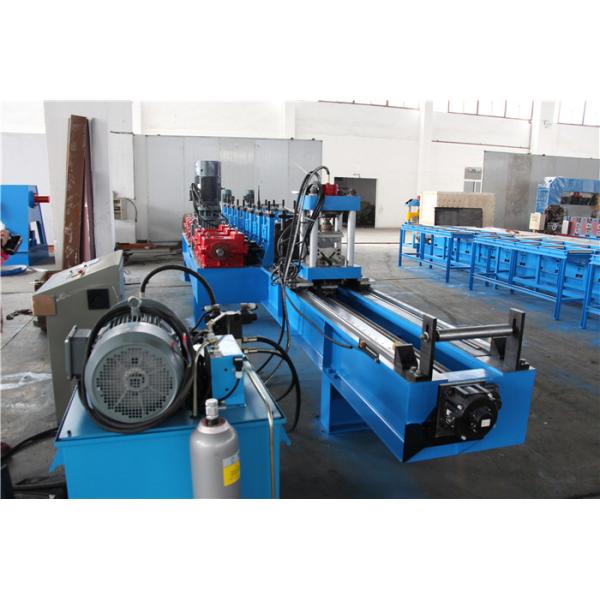

High Speed Roof Angle Roll Forming Machine With Double Head Decoiler

Ask Lasest Price
Brand Name :	Saibo
Model Number :	YX30-30
Certification :	CE/ISO
Price :	negotiation
Supply Ability :	300 sets per year
Delivery Time :	60 working days after received deposit

Add to Cart

Product Details
Company Profile

High Speed Roof Angle Roll Forming Machine With Double Head Decoiler

Main specification

No	Specification of the material
1	Suitable Material	Carbon steel
2	Width of the raw material	Based on the purlin sizes.
3	Thickness	2.0-4.0mm

The Chart of Process Flow

Un-coiler—Roll Forming—Fly Cutting—out table

Specification of Components

No		Technical Specification & Remark
1	Double head Un-coiler	Steel coil width: 200 mm for each head Maximum coil weight: 1500 Kg for each head Main motor power: 5.5KW
4	Main Roll Forming Machine	Roll station:9 stations+ 1 station of torque head Roller material:Gcr15, 58-62,HRC hardness and chrome plated surface structure: cast iron drive: gear box
6	Hydraulic fly cutting system	Machine adopt hydraulic fly cutting system. track power: servo motor cutting is no stop to get high speed. Material of blade:Cr12 with heat treatment 58-60°
7	Hydraulic System	Hydraulic power: 7.5kw hydraulic station with power tank to get more power. Hydraulic oil: 46# hydraulic oil
8	Computer Control Cabinet	Programmable setting of profile length and quantity Operating system language: English and Chinese Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved PLC brand: Panasonic
9	Out table	Size: about 2.0m long0.8mwide0.6-1mhigh One out table with three support roller Quantity: 2 units

6. Warranty

Warranty: 1 year warranty from date of shipment
Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
