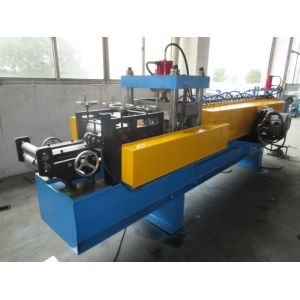

0.8-1.5mm Steel Stud Roll Forming Machine with Servo Motor Chain Drive

1. Specification of the material

1. Suitable Material: PI/PPGI
2. Width of the raw material: according to the final profile

3. Thickness: 0.8-1.5mm

2. Machine Detailed Parameters

3. Profile drawing

4. The Chart of Process Flow

5. Specification of Components

(1) 3T manual uncoiler

• Width of feeding: 500mm
• Capability: 3 Ton
• Bound of expand &fight: 380mm—520mm
• Mode of expand &fight: inner expand &fight by manual

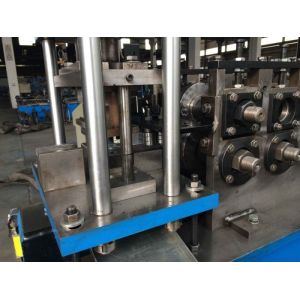

(2) Punching system

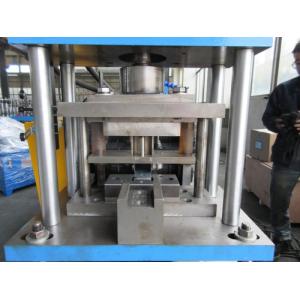

• Machine adopts pre-punching system
• Cr12, hardness HRC 58-62 and chrome coating

(3) Main Roll Forming Machine

• Roller material:Gcr15
• Shaft diameter: ￠56mm material: SAE1045 with quenching and tempering
• Machine structure: wire electric cutting
• Main machine with cooling system

(4) Hydraulic cutting system

• Cutting motion: The main machine automatically stops and then cutting. After the cutting, the main machine will automatically start.

• Material of blade: CR12with heat treatment

• Length measuring: Automatic length measuring

• Tolerance of length: +/- 1.5mm




(5) Computer Control Cabinet

• Programmable setting of profile length and quantity
• Operating system language: English and Chinese
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

• PLC: Panasonic or customerization
