Normal Speed Stud Roll Forming Machine YX50-162.5 Roll Forming Machine by Chain

1. Specification of the material

1. Sutiable Material: PI/PPGI
2. Width of the raw material: 300mm

3. Thickness: 0.5mm

2. Machine Detailed Parameters

3. Profile drawing

4. The Chart of Process Flow

5. Specification of Components

(1) 3T Manual Un-coiler

• Adopt automatic hydraulic system for expand
• Width of feeding: 350mm
• Capability: 3 Ton
• Bound of expand &fight: 380mm—520mm
• Mode of expand &fight: inner expand &fight by manual
• Way of feeding: manual

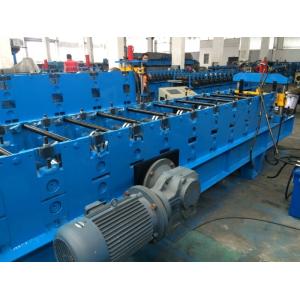

(2) Main Roll Forming Machine

• Roller material:ASTM1045 chrome plated surface with chrome
• Shaft diameter: ￠56mm material: SAE1045 with quenching and tempering

(3) Machine Structure

• Main frame by 350H beam welding
• Machine structure: Wall board

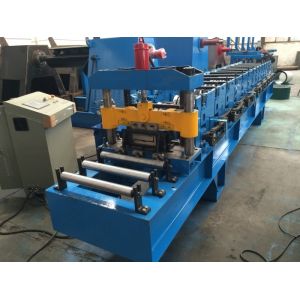

(4) Hydraulic cutting system

• Cutting after forming: Cut the sheet after roll forming to required length
• Uses two hydraulic cylinders for operation.
• Material of blade:Cr12, 58-62 HRC hardness
• Cutting power by hydraulic,3KW
• Working pressure: 12Mpa adjustable
• Length measuring: Automatic encoder length measuring
• Tolerance of length: +/- 1.5mm for each piece end product

(5) Computer Control Cabinet

• Programmable setting of profile length and quantity
• Operating system language: English and Chinese
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

• PLC: Panasonic or customerization

Zhangjiagang Saibo Science & Technology Co.,Ltd. is a professional manufacturer specializing in the developing and exporting of roll forming machine such as Metal roof &wall panels machines, C&Z-shaped pulins machines drywall Stud-track forming machines , Metal decks machines ,No- girder and Columnitation curves forming machines, Guard rails forming machines ,Downspout pipes forming machines and so on. Our company, which is located in zhangjiagang city ,.is close to Zhangjiagang Economy Development Area and Shanghai City with superior geographic position and convenient transportation.

Since 90s ,in the 20 centruies , the market for steel structure building industry boomed but with the development of steel structure industry ,the shorter period for construction and beautiful extermal appearance, as well reasonable price was occupied in the market of building industry.

Zhangjiagang Saibo Science & Technology Co., Ltd engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machines for our new and old costomers .In particular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality ,through design, and installation. Our goal is" future by heartiness, faith leads to the world"

Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
