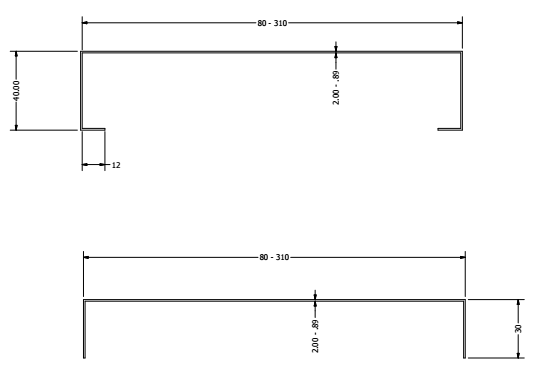

0.7-1.6mm C Steel Framing / C Purlin Roll Forming Machine With Track Cutting

Ask Lasest Price
Brand Name :	Saibo
Model Number :	80-310
Certification :	CE/ISO
Price :	negotiation
Supply Ability :	300 sets per year
Delivery Time :	90 days

Add to Cart

Product Details
Company Profile

0.7-1.6mm C Steel Framing / C Purlin Roll Forming Machine With Track Cutting

Components of machine:

Decoiler	1set
Leveling device	1set
Main roll forming machine	1set
Hydraulic cutting system	1set
Controlling system	1set
Run out table	2 set

Main speficication:

2. The Chart of Process Flow

Uncoiling→Feeding material into machine→Leveling part →Roll forming→Correction adjust system→ Post tracking cutting→Products receiving

**Specification**
No	Technical Specification & Remark
1	5T manual decoiler Width of feeding: 500mm Capability: 5 Ton Inter diameter: 500-590mm Maximal out diameter: 1500mm Mode of expand &fight: inner expand &fight by manual Way of feeding: manual
2	Leveling part Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers) Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC. Flattener roller: material is SAE 1045, hardening and tempering
3	Main Roll Forming Machine Thickness range: 0.7-1.6mm Main motor power:11kw Adjust flange and width: by handhwheel Machine Voltage, Frequency, Phase: 220 V, 60 Hz, 3Phase Roll station: about 16 stations Roller material:ASTM52100 chrome plated surface with hardness 58-62 degree Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering
4	Correction adjust system Correction of the product sheet to be straight.
5	Post track cutting system Hydraulic power: 7.5kw Working pressure: 20Mpa adjustable Solenoid valve: 2 groups Hydraulic oil: 46# hydraulic oil
6	Computer Control Cabinet Programmable setting of profile length and quantity Operating system language: English and Chinese Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved Length inaccuracy can be amended easily. PLC brand: Panasonic
7	Out table Support the product come out from the machine out table length: 2m Quantity: 2 units

4. Warranty

Warranty: 1 year warranty from date of shipment
Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.
