1. Machine Detailed Parameters

3. Profile drawing

4. The Chart of Process Flow

5. Specification of Components

(1) 3T Manual Un-coiler

• Adopt automatic hydraulic system for expand
• Width of feeding: 350mm
• Capability: 3 Ton
• Bound of expand &fight: 380mm—520mm
• Mode of expand &fight: inner expand &fight by manual
• Way of feeding: manual

(2) Main Roll Forming Machine

• Roller material:ASTM1045 chrome plated surface with chrome
• Shaft diameter: ￠56mm material: SAE1045 with quenching and tempering

(3) Machine Structure

• Main frame by steel plate welding
• Machine structure: wire-electrode cutting

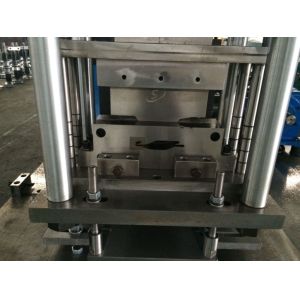

(4) Hydraulic cutting system

• Cutting after forming: Cut the sheet after roll forming to required length
• Uses two hydraulic cylinders for operation.
• Material of blade:Cr12, 58-62 HRC hardness , 6 sets
• Cutting power by hydraulic,4KW
• Working pressure: 12Mpa adjustable
• Length measuring: Automatic encoder length measuring
• Tolerance of length: +/- 1.5mm for each piece end product

(5) Computer Control Cabinet

• Programmable setting of profile length and quantity
• Operating system language: English and Chinese
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

• PLC: Panasonic or customerization
