High Speed Hat Omega Purlin Angle Roll Forming Machine 10.6-2.0mm By Chain

main speficication:

Hat profile:

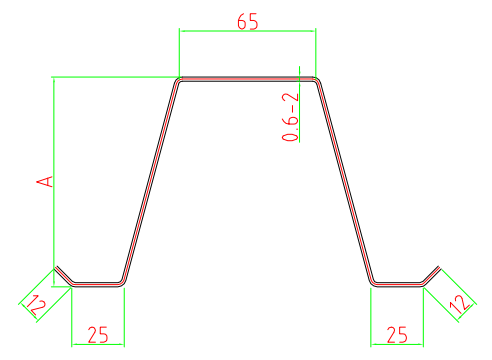

Omega profile: A is adjustable base on customer request

2. The Chart of Process Flow

5T hydrualic single head Uncoiler+Coil car—Feeding&Leveling—Servo feeding &hydraulic punching(7stations)&Cutting—Feeding&transportation table—Roll Forming(2 units)—Rectify—Auto stacker

**Specification**
No		Technical Specification & Remark
1	5T hydraulic decoiler	Steel coil width: 600 mm; Internal diameter of coil: variable, from 450 mm to 530 mm Maximum coil weight: 5000 Kg; Main motor power: 5.5KW Hydraulic power: 4kw
2	Leveling part	The quantity of leveler rolls must be planned according to thickness 0.6mm to 2.0mm. Flattened roller: upper is 3 rollers, down is 4 stations(total is 7 rollers) Flattened roller material: Gcr15 thermal treatment hardness 58-62 HRC. Diameter of flattened shaft:￠70mm, material is SAE 1045, hardening and tempering Power: 4kw
3	Servo feeding& Punching&Cutting	Feeding power by servo motor: 3KW Base on customer provide punching drawing, this machine need adopt seven units hydraulic punching system before roll forming. Hydraulic power:15kw Punching speed: about 60times/min. Cutting by same hydraulic system Material of blade:Cr12mov, 58-62 HRC hardness Tolerance of length: +/- 1.5mm for each piece end product After cutting the sheet will by guide rollers to transportation table
4	Transportation table	Maximal length: 5-7m Width: about 500mm which base on profile request Power: 3KW AC motor Conveyor table with roller and belt moving
5	Main Roll Forming Machine	Main motor power:18.5kw Adjust size:through electric gear motors Roll station: about 15 stations Roller material:Cr12 chrome plated surface with hardness 58-62 degree Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering Drive by chain Cooling system is include
6	Correction adjust system	Function: make the end product in straight, left and right, up and down Adjust by hand wheel, manual Roller material:CR12 chrome plated surface with hardness 58-62 degree ,CNC, Color: blue or base on customer request Quantity: two main machine (one for omega and one for Hat profile)
7	Hydraulic System	Hydraulic power: 15kw Punching speed: 60times/min Working pressure: 20-30Mpa adjustable Solenoid valve: 8 groups Hydraulic oil: 46# hydraulic oil Hydraulic valve Manufacturer :Yuken Fan and energy tank is include Quantity :1
8	Computer Control Cabinet	Programmable setting of profile length and quantity Operating system language: English and Chinese Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved Length inaccuracy can be amended easily. PLC brand: Panasonic Touch screen: Siemens VFD:Yaskawa
9	Stacker	Working by air compressor Air compressor: provide by buyer Speed suitable for 0-50m/min Length in 6m
