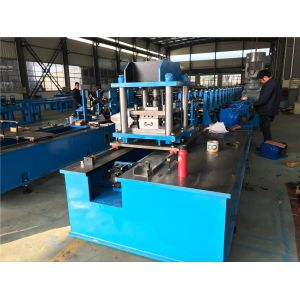

High Speed Purlin Roll Forming Machine Total Power 80KW Cr12 Roller Material

Ask Lasest Price
Brand Name :	Saibo
Model Number :	Sigma purlin
Certification :	CE/ISO
Price :	negotiation
Supply Ability :	300 sets per year
Delivery Time :	90 days

Add to Cart

Product Details
Company Profile

High Speed Purlin Roll Forming Machine Total Power 80KW Cr12 Roller Material

Main speficication:

profile:

2. The Chart of Process Flow

5T hydraulic un-coiler— Flatten—Servo feeding& punching—Roll Forming— Rectify—Track Cutting& punching—Out table

**Specification**
No		Technical Specification & Remark
1	5T hydraulic decoiler	Steel coil width: 500 mm; Internal diameter of coil: variable, from 470 mm to 520 mm Maximum coil weight: 5000 Kg; Main motor power: 5.5KW Hydraulic power: 4kw
2	Leveling part	7 roller for leveling , up 3 rollers, down 4 rollers Leveling roller: 40CR, quenching, shaft diameter : 76mm Feeding roller: 40CR, quenching, shaft diameter : 95mm Power: 5.5KW Drive by gear box, model: MTTX160 Leveling speed: 0-30m/min
3	Servo feeding& Punching	Servo feeding system This system adopt servo feeding to make high speed and precision Servo power: 3KW (Brand: YASKAWA) Punching system Base on customer provide punching drawing, this machine need adopt 1 unit hole punching and words punching Punching table: 8m The punches and dollies will be CR12MOV, quenching Hydraulic power: 7.5kw Solenoid valve: 3 groups
4	Feeding of forming	Guide sheet to forming section Three line rollers. Two hand wheel adjust size in same time

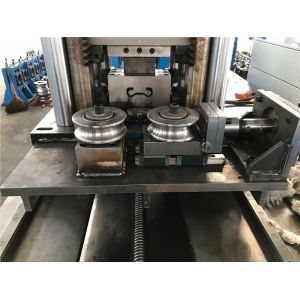

5	Main Roll Forming Machine	Stand design by wire-electrode cutting, thickness in 52mm Roller material: CR12 surface quenching, HRC58-62 degree, finish turning. Shaft diameter: ￠100mm , material: 40Cr with tempering and hardness To avoid accidents, the driven parts will be covered with the protective cover, height: 1.5m Main power: 45KW
6	Correction adjust system	Function: make the end product in straight, left and right, up and down
7	Hydraulic Cutting System	Adopt the hydraulic track cutting Cutting after forming: Cut the sheet after roll forming to required length Material of blade: CR12MOV, quenching Cutting power by hydraulic, 7.5KW Servo power: 3KW Working pressure: maximal 25Mpa Solenoid valve: 1 group Length measuring: Automatic encoder length measuring Tolerance of length: +/- 1.5mm for each piece end product
8	Computer Control Cabinet	Programmable setting of profile length and quantity Operating system language: English and Chinese Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved Length inaccuracy can be amended easily. PLC brand: Panasonic Touch screen: Siemens VFD:Yaskawa
9	Stacker	Working by air compressor Air compressor: provide by buyer Length in 6m

4. Warranty

Warranty: 1 year warranty from date of shipment
Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation
